ZM-9001

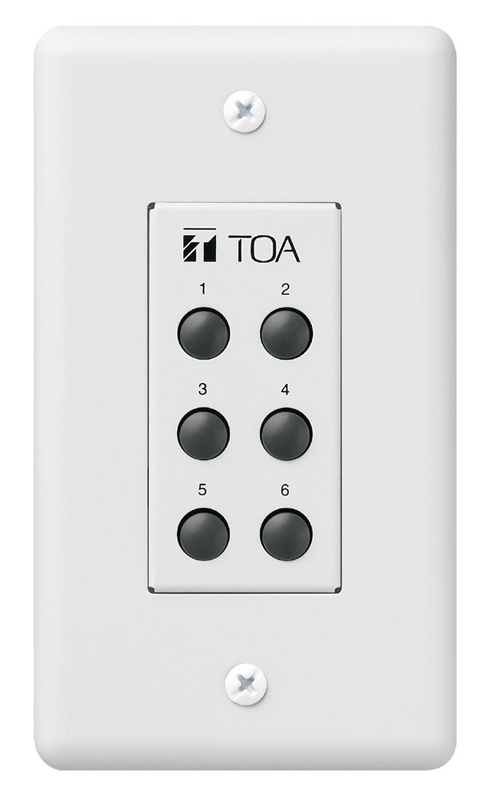

The ZM-9001 is a remote control switch panel used with the 9000 series amplifiers. It provides an additional 6 control inputs of amplifier expansion, and can be mounted in an American standard 1-gang electrical box in the wall.

Applicable Cable Single conductor shielded cable
Line Resistance 50 Ω or less (per line)
Terminal M3 screw terminal, distance between barriers: 7.62 mm
Operating Temperature -10℃ to +40℃
Finish Surface-treated steel plate, white, paint
Dimensions 72 (W) × 127 (H) × 45 (D) mm
Weight 170 g
Accessory Box mounting screw (No.6-32UNC × 30) …2,
Box mounting screw (M4 × 30) …2, Panel mounting screw …2
