Network Intercom System

N-8610RM IP Remote Microphone Station

N-8610RM IP Remote Microphone Station

N-8610RM

The N-8610RM is an IP remote microphone that employs packet audio technology. High-quality voice output to intercom stations connected to the IP intercom exchange or Multi-Interface Unit and to other N-8610RM units can be achieved by simply connecting the remote microphone to a LAN or WAN network. The N-8610RM features a full range of remote microphone operating capability, and is equipped with 14 function keys, including one under a cover, each with its own indicator. Functions can be assigned individually to these keys. The number of function keys and indicators can be increased to up to 40 in blocks of 10 with the addition of up to 4 RM-210 Extension Units. Power can be supplied to the microphone using a PoE-compatible switching hub, eliminating the need for the N-8610RM's optional AC adapter. The N-8610RM can also be wall-mounted with the additional use of the optional WB-RM200 Wall-Mounting Bracket.

N-8600MS IP Master Station

N-8600MS IP Master Station

N-8600MS Y

The N-8600MS is an IP multifunctional master station employing packet audio technology. Connecting the N-8600MS to an IP network (LAN or WAN) permits hands-free or handset conversation of high sound quality to be made between the N-8600MS and intercom stations connected to the IP Intercom Exchange, or between the N-8600MS units. Besides, the N-8600MS can be used in conjunction with the Multi Interface units through a network. The Multifunctional Master Station provides LCD display, Auto-dialer function enabling one-touch dialing, headset terminal and external speaker terminal. Power can be supplied from the PoE (Power over Ethernet) switching hub. (In this case, an AC adapter is not required.) This station can be mounted to the wall using an optional YC-280 wall mounting bracket.

N-8640DS IP Door Station

N-8640DS IP Door Station

N-8640DS

The N-8640DS is an IP door station employing packet audio technology. Connecting the N-8640DS to an IP network (LAN or WAN) permits hands-free conversation of high sound quality to be made between the N-8640DS and the intercom station connected to the IP Intercom Exchange, or between the N-8640DS and an IP multifunctional master station. Besides, the N-8640DS can be used in conjunction with the Multi Interface units through a network. The N-8640DS is equipped with 1 channel of control input, 5 channels of control outputs (including 1 channel of relay control output), and speaker output, thereby enabling connections of external equipment such as a sensor, indicator, and external speaker.

N-8640SB IP Door Station Board

N-8640SB IP Door Station Board

N-8640SB

The N-8640SB is a kit of the assembling parts for the custom-made IP door station. This kit consists of the N-8640DS IP Door Station parts excluding the front panel. You can make the IP door station suitable for applications using this kit product in combination with the operation panel section to be prepared separately.

N-8650DS IP Indoor Station

N-8650DS IP Indoor Station

N-8650DS

The N-8650DS is an indoor use IP door station employing packet audio technology. Connecting the N-8650DS to an IP network (LAN or WAN) permits hands-free conversation of high sound quality to be made between the N-8650DS and the intercom station connected to the IP Intercom Exchange, or between the N-8650DS and an IP multifunctional master station. Besides, the N-8650DS can be used in conjunction with the Multi Interface units through a network. The N-8650DS is equipped with 1 channel of control input, 5 channels of control outputs (including 1 channel of relay control output), and speaker output, thereby enabling connections of external equipment such as a sensor, indicator, and external speaker.

N-8000AF Audio Interface Unit

N-8000AF Audio Interface Unit

N-8000AF CE

The N-8000AF is an Audio interface unit designed for use with TOA's packet intercom system (IP network-compatible intercom system) that employs the packet audio technology. It has an analog audio input and output, a time synchronization contact input, and each 8 contact inputs and outputs. Connecting the unit to the LAN permits recording of conversations, chime broadcast at regular intervals (time signal) and paging broadcast to be realized. It can be mounted in an EIA equipment rack (1U size) with the use of an optional rack mounting bracket or installed on a wall using an optional wall mounting bracket.

N-8000AL Telephone Interface Unit

N-8000AL Telephone Interface Unit

N-8000AL CE

The N-8000AL is a Telephone interface unit designed for use with TOA's packet intercom system (IP network-compatible intercom system) that employs the packet audio technology. It has a single telephone line interface, allowing an analog telephone to be connected. Connecting the unit to the LAN permits the analog telephone to be operated in the same manner as the intercom master station. It can be mounted in an EIA equipment rack (1U size) with the use of an optional rack mounting bracket or installed on a wall using an optional wall mounting bracket.

N-8000CO C/O Interface Unit

N-8000CO C/O Interface Unit

N-8000CO CE

The N-8000CO is a C/O interface unit designed for use with TOA's packet intercom system (IP network-compatible intercom system) that employs the packet audio technology. It has an analog central office line circuit, allowing the intercom station to make and receive calls to and from the telephone line. Connecting the unit to the LAN permits paging calls through analog subscriber line to be made and the equipment connected to the N-8000MI and N-8000DI to be controlled. It can be mounted in an EIA equipment rack (1U size) with the use of an optional rack mounting bracket or installed on a wall using an optional wall mounting bracket.

N-8000DI Direct Select Unit

N-8000DI Direct Select Unit

N-8000DI CE

The N-8000DI is a Direct select unit designed for use with TOA's packet intercom system (IP network-compatible intercom system) that employs the packet audio technology. It is equipped with each 32 contact inputs and outputs, and the indicators on the front panel indicate the output statuses. Connecting the unit to the LAN permits the calling station display, external equipment control, and direct selection function to be realized. It can be mounted in an EIA equipment rack (1U size) with the use of an accessory rack mounting bracket or installed on a wall using an optional wall mounting bracket.

N-8000EX IP Network Intercom Exchange

N-8000EX IP Network Intercom Exchange

N-8000EX CE

The IP Intercom Exchange uses packet audio technology to permit connection of up to sixteen N-8000 Series stations, and features two outputs for public address paging. Hands-free conversation is possible between stations. Moreover, the exchange is equipped with a networking interface, allowing up to 192 exchanges to be connected over a network using additional IP intercom exchanges. The Exchange can be mounted in an EIA standard rack (1-unit size) or to a wall using the supplied bracket.

N-8010EX IP Network Intercom Exchange

N-8010EX IP Network Intercom Exchange

N-8010EX CE

The IP Intercom Exchange uses packet audio technology to permit connection of up to sixteen N-8000 Series stations. Hands-free conversation is possible between stations. Moreover, the exchange is equipped with a networking interface, allowing up to 192 exchanges to be connected over a network using additional IP intercom exchanges. The Exchange can be mounted in an EIA standard rack (1-unit size) or to a wall using the supplied bracket.

N-8000MS Multifunctional Master Station

N-8000MS Multifunctional Master Station

N-8000MS

This Master Station is designed to connect to the IP Intercom Exchange, and provides hands-free or handset conversation of high sound quality. In addition to the functions of the standard Master Station, the Multifunctional Master Station provides LCD display, Auto-dialer function enabling one-touch dialing, headset terminal and external speaker terminal. This station can be mounted to the wall using an optional YC-280 wall mounting bracket.

N-8010MS Standard Master Station

N-8010MS Standard Master Station

N-8010MS

This Master Station is designed to connect to the IP Intercom Exchange, and provides hands-free or handset conversation of high sound quality. This station can be mounted to the wall using an optional YC-280 wall mounting bracket.

N-8011MS Standard Hands-Free Master Station

N-8011MS Standard Hands-Free Master Station

N-8011MS

This Master Station is designed to connect to the IP Intercom Exchange, and provides hands-free conversation of high sound quality. With its space-saving design, this Master Station features the same functions as the Standard Master Station. This station can be mounted to the wall using an optional YC-290 wall mounting bracket.

N-8020MS Industrial-Use Master Station

N-8020MS Industrial-Use Master Station

N-8020MS

This Master Station is designed to connect to the IP Intercom Exchange, and provides hands-free or handset conversation of high sound quality. It features dustproof and waterproof construction, and can be used in locations exposed to ambient temperatures ranging from -10 ℃ to +50 ℃. In addition to the functions of the standard Master Station, the Industrial-Use Station permits connection of external speakers, and can take out control signal for dial-in indicator from its contact output. This station can be mounted to the wall using an optional YC-280 wall mounting bracket.

N-8031MS Flush-Mount Hands-Free Master Station

N-8031MS Flush-Mount Hands-Free Master Station

N-8031MS

The N-8031MS is a flush- or surface-mount master station designed to operate in conjunction with TOA IP Intercom Exchange and features high quality hands-free conversation. Connecting a foot switch or other external switch to the external dial input terminal permits one-touch dialing operation by way of such switches. Handset conversation can be established in conjunction with the optional RS-191.

RS-191 Handset Unit

RS-191 Handset Unit

RS-191

The RS-191 Handset is designed exclusively for use indoors in combination with the RS-190Substation. Lifting the handset permits handset conversation. Handset conversation can be established in conjunction with the optional Flush-mount Hands-free Master Station N-8031MS.

N-8031SB Hands-Free Master Station Board Unit

N-8031SB Hands-Free Master Station Board Unit

N-8031SB

The N-8031SB is a printed circuit board unit for the N-8031MS Flush-mount Hands-Free Master Station, You can make the master station suitable for applications using the N-8031SB in combination with the operation panel section to be prepared separately.

N-8050DS Door Station

N-8050DS Door Station

N-8050DS

Designed to connect to the IP Intercom Exchange, the N-8050DS is a door station featuring high quality hands-free conversation. It has a contact output (momentarily closed) to remotely control an electronic door lock. It is in full conformity with IP54 water-proof and dust-proof standards. The operating temperature range is -10 to 50℃. As provided with guard nets inside to cover over the openings of microphone and speaker, the N-8050DS can be installed free from care in public space.

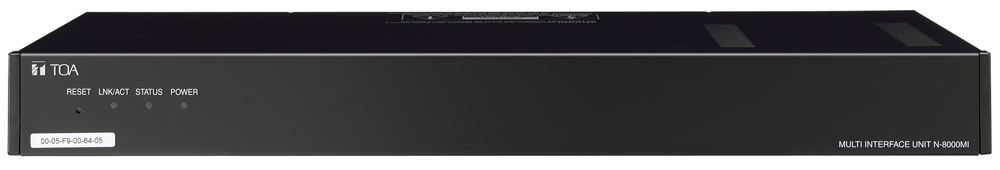

N-8000MI Multi Interface Unit

N-8000MI Multi Interface Unit

N-8000MI CE

The N-8000MI is a multi-interface unit designed for use with TOA's packet intercom system (IP network-compatible intercom system) that employs the packet audio technology. Connecting the multi-interface to a local area network permits the ideal system for in-house or wide-area information transmission applications, such as paging, periodical broadcasts, and background music broadcasts, to be built between the multi-interface and IP intercom exchange or other multi-interface unit. The contact bridge function can be realized through contact input and output control. The N-8000MI also features the tie-line function to be connected to the EXES-2000 intercom system or the EXES-6000 system. A total of up to 192 multi-interface units and IP intercom exchanges can be connected to a network. The unit can be mounted in an EIA standard rack (1-unit size).

N-8050SB Hands-Free Substation Board Unit

N-8050SB Hands-Free Substation Board Unit

N-8050SB

The N-8050SB is a printed circuit board unit for the N-8050DS Door Station, You can make the sub station suitable for applications using the N-8050SB in combination with the operation panel section to be prepared separately.

N-8000RS Sub Station Interface Unit

N-8000RS Sub Station Interface Unit

N-8000RS CE

The N-8000RS is a Sub-station interface unit designed for use with TOA's packet intercom system (IP network-compatible intercom system) that employs the packet audio technology. Up to 16 sub-stations can be connected using 2-core shielded cables. The number of LAN-connected N-8000 system components such as the N-8000RS and IP intercom exchanges is 192 maximum in total. Connecting the unit to the LAN permits the sub-station to receive paging calls and make calls to both the master station connected to the IP intercom exchange and the IP master station. It can be mounted in an EIA equipment rack (1U size) with the use of an accessory rack mounting bracket or installed on a wall using an optional wall mounting bracket.

RS-150 Substation

RS-150 Substation

RS-150

The RS-150 can call and converse with the registered master stations. It utilizes a 2-core shielded cable.

RS-160 Substation

RS-160 Substation

RS-160

The RS-160 can call and converse with the registered master stations.It utilizes a 2-core shielded cable.

RS-170 Substation

RS-170 Substation

RS-170

The RS-170 can call and make converse with the registered master stations.It utilizes a 2-core shielded cable.

RS-180 Substation

RS-180 Substation

RS-180

The RS-180 can call and converse with the registered master stations.It has a indicator lamp and control output channel, and utilizes a 2-core shielded cable.

N-8400RS Sub Station Interface Unit

N-8400RS Sub Station Interface Unit

N-8400RS CE

The N-8400RS is a Sub-station interface unit designed for use with TOA's packet intercom system (IP network-compatible intercom system) that employs the packet audio technology. Up to 16 sub-stations can be connected using 2 sets of twisted pair cables. The number of LAN-connected N-8000 system components such as the N-8400RS and IP intercom exchanges is 192 maximum in total. Connecting the unit to the LAN permits the sub-station to receive paging calls and make calls to both the master station connected to the IP intercom exchange and the IP master station. It can be mounted in an EIA equipment rack (1U size) with the use of an accessory rack mounting bracket or installed on a wall using an optional wall mounting bracket.

N-8410MS Analog Standard Master Station

N-8410MS Analog Standard Master Station

N-8410MS

This Master Station is designed to connect to the N-8400RS Sub Station Interface Unit, and provides hands-free or handset conversation of high sound quality. This station can be mounted to the wall using an optional YC-280 wall mounting bracket.

RS-460 IP Intercom Substation

RS-460 IP Intercom Substation

RS-460

The RS-460 is a substation to be connected to the N-8400RS 4-Wire Substation Interface Unit. Pressing a call button will initiate a call to a preprogrammed master station, enabling a conversation.

RS-470 IP Intercom Substation

RS-470 IP Intercom Substation

RS-470

The RS-470 is a substation to be connected to the N-8400RS 4-Wire Substation Interface Unit. Pressing a call button will initiate a call to a preprogrammed master station, enabling a conversation.

RS-480 IP Intercom Substation

RS-480 IP Intercom Substation

RS-480

The RS-480 is a substation to be connected to the N-8400RS 4-Wire Substation Interface Unit.Pressing a call button will initiate a call to a preprogrammed master station, enabling a conversation. Also, it can be used in connection with the RS-481 Option Handset.The RS-480 is equipped with a Status indicator.

RS-442 IP Intercom Switch Board

RS-442 IP Intercom Switch Board

RS-442

The RS-442 is a switch board designed for use with the N-8400RS 4-Wire Substation Interface Unit. You can make desired switch panels to meet intended purposes by combining the RS-142 with theseparately prepared operation panel having 3 switches to be used as call buttons. Also, it can be used in connection with the RS-481 Ip Intercom Option Handset.

YC-241 Flush Mount Back Box

YC-241 Flush Mount Back Box

YC-241

The YC-241 back box is used with the YC-240M/YC-240S or N-8031MS flush-mounting kit.

YC-251 Surface Mount Back Box

YC-251 Surface Mount Back Box

YC-251

The YC-251 is a wall-mount box designed for the N-8031MS Flush-mount Hands-Free Master Station. It permits the N-8031MS to be installed on a wall when the N-8031MS can not be flush-mounted on a wall.

YC-280 Wall Mount Bracket

YC-280 Wall Mount Bracket

YC-280

The YC-280 is a wall-mounting bracket specially designed for the master station of the N-8000 series Packet Intercom system. The master station can be installed on a wall or its front operation panel can be inclined from the desk surface by attaching the YC-280.

YC-290 Wall Mount Bracket

YC-290 Wall Mount Bracket

YC-290

The YC-290 is a wall-mounting bracket specially designed for the Hands-free master station of the N-8000 series Packet Intercom system. The master station can be installed on a wall or its front operation panel can be inclined from the desk surface by attaching the YC-290.

YC-150 Flush-Mounted Type

YC-150 Flush-Mounted Type

YC-150

The YC-150 back box is used with the PC-391/PC-391T or N-8050DS flush-mounting kit.

AD-1210P AC Adapter

AD-1210P AC Adapter

AD-1210P

AD-1210P เป็นอุปกรณ์แปลงไฟ AC เพื่อใช้งานกับ Packet Intercom IP Stations

YC-850 Interface Unit Bracket

YC-850 Interface Unit Bracket

YC-850

The YC-850 Wall mounting bracket is designed to mount the N-8000 Series Interface units to a wall.

YC-302 2-Gang Electrical Box

YC-302 2-Gang Electrical Box

YC-302

The YC-302 is a 2-gang electrical box (with cover) of wall flush mount type.
