Wired Conference System

TS-690 Central Unit

TS-690 Central Unit

TS-690 *AS Model*

The TS-690 is a Central Unit for TOA Conference System, TS-690 Series. Use of its line connection terminals permits connections to the conference units of TS-691L & TS-692L, making up a complete conference system to meet your needs. With the use of an optional rack mounting bracket, it can be mounted in a EIA Standard equipment rack, occupying 2 unit size.

TS-691L Chairman Unit with Long Microphone

TS-691L Chairman Unit with Long Microphone

TS-691L *AS Model*

The TS-691L is a Chairman unit of the TOA conference system, TS-690 Series of which compact and lightweight design makes it easy to install and store. Placing the speech button in ON position allows a chairman to speak and disable the speaker to prevent feedback. If the speech button is placed in the OFF position, the microphone cannot be used but the speaker is turned on, allowing voices from delegate units (TS-692L) to be monitored. Pressing the priority key on the chairman unit allows chairman to take precedence over any delegate units. And the TS-691L Chairman Unit comes with a long microphone as a standard accessory.

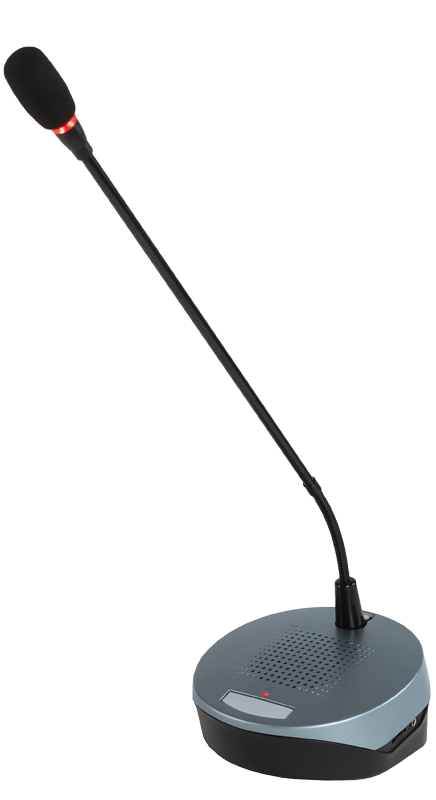

TS-692L Delegate Unit with Long Microphone

TS-692L Delegate Unit with Long Microphone

TS-692L *AS Model*

The TS-692L is a Delegate unit of the TOA conference system, TS-690 Series of which compact and lightweight design makes it easy to install and store. Placing the speech button in ON position permits speech and disable the speaker to prevent feedback. If the speech button is placed in the OFF position, the microphone cannot be used but the speaker is turned on, allowing voices from other conference units to be monitored. And the TS-692L Delegate Unit comes with a long microphone as a standard accessory.

TS-780 Central Unit

TS-780 Central Unit

TS-780 CE

The TS-780 is a Central unit for TOA Conference system. Use of its line connection terminals permits connections to the conference units of TS-781 and TS-782, making up a conference system. The TS-780 is equipped with a MP3 recorder that permits conference contents to be recorded on a SD card. Up to 3 Central units can be connected. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (2 unit size).

TS-781 Chairman Unit

TS-781 Chairman Unit

TS-781

The TS-781 is a Chairman unit for TOA Conference system, of which compact and lightweight design makes it easy to install and store. Placing the speech button in the ON position allows a chairman to speak and disables the speaker to prevent feedback. If the speech button is placed in the OFF position, the microphone cannot be used but the speaker is turned on, allowing the voices from delegate units (TS-782) to be monitored. By pressing the priority button, the chairman unit can take precedence over any delegate units. Two types of dedicated microphones are made available for the TS-781 as optional products: the TS-773 standard type and the TS-774 long type.

TS-782 Delegate Unit

TS-782 Delegate Unit

TS-782

The TS-782 is a Delegate unit for TOA Conference system, of which compact and lightweight design makes it easy to install and store. Placing the speech button in the ON position permits speech and disables the speaker to prevent feedback. If the speech button is placed in the OFF position, the microphone cannot be used but the speaker is turned on, allowing the voices from other conference units to be monitored. Two types of dedicated microphones are made available for the TS-782 as optional products: the TS-773 standard type and the TS-774 long type.

YR-780-10M Extension Cord

YR-780-10M Extension Cord

YR-780-10M

The YR-780-10M is an extension cord used to connect between the conference system's Central unit and conference units (TS-781 and TS-782) .

YR-780-2M Extension Cord

YR-780-2M Extension Cord

YR-780-2M

The YR-780-2M is an extension cord used to connect between the conference system's Central unit and conference units (TS-781 and TS-782) .

TS-773 Microphone

TS-773 Microphone

TS-773

The TS-773 is a designed microphone for exclusive use with the conference units of the TS-770 series Conference system. Ring type In-Use lamp located at the microphone head permits displaying the operation status of the conference units.

TS-774 Microphone

TS-774 Microphone

TS-774

The TS-774 is a designed microphone for exclusive use with the conference units of the TS-770 series Conference system. Ring type In-Use lamp located at the microphone head permits displaying the operation status of the conference units.
