SR-L1B Super Woofer System

SR-L1B Super Woofer System

SR-L1B

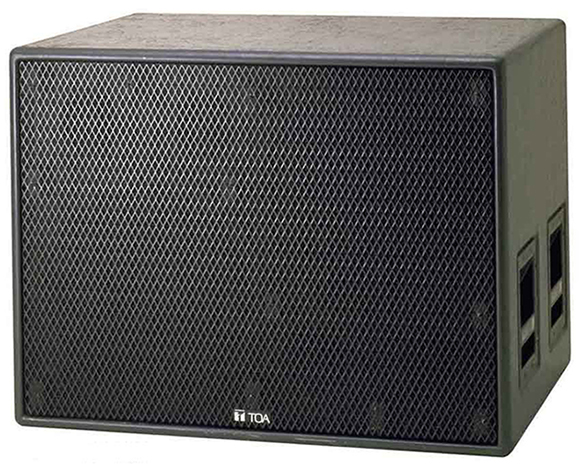

The model SR-L1B from TOA is compact integrated sub woofer system for use in sound reinforcement applications with an emphasis on quality sound and durability, and for easy transportation. Recommended digital speaker processor is the DP-SP3 (option).

Enclosure Bass reflex type
Power HandlingCapacity Continuous pinknoise: 150 W × 2
Continuous program: 450 W × 2
Rated Impedance 8 Ω × 2
Sensitivity 96 dB (1 m, 1 W)
Frequency Response 35 Hz - 1 kHz
Crossover Frequency 125 Hz (when recommended parameters are applied by the optional DP-SP3)
Speaker Component 38 cm cone-type × 2
Input Connector NEUTRIK NL4MPR
Finish Enclosure: urethane coating, gray
Front grill: Steel plate paint, black
Dimensions 830 (W) × 631 (H) × 607 (D) mm
Weight 77 kg
