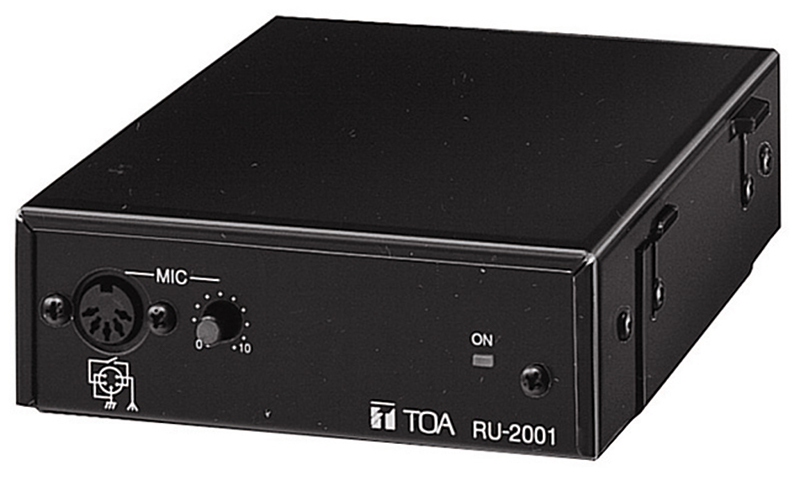

RU-2001 Amplifier Control Unit

RU-2001 Amplifier Control Unit

RU-2001

The RU-2001 is a microphone amplifier for the PM-660D Paging Microphone with a remote control switch and a 5-pin DIN socket. The power of the PM-660D's internal power amplifier, and globalspeaker output can be remotely controlled from the RU-2001.

* 0 dB = 1 V
Power Requirement 12 - 24 V DC or 12 V AC adaptor
Current Consumption 60 mA
Microphone Input -62 dB*, 600 Ω, unbalanced, 5-pin DIN socket
Output 0 dB*, 600 Ω, balanced, M3 screw terminal, distance between barriers: 6.4 mm (0.25")
Applicable Microphone PM-660D
Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Finish Pre-coated steel plate, black
Dimensions 124 (W) × 42.5 (H) × 159 (D) mm (4.88" × 1.67" × 6.26")
Weight 600 g (1.32 lb.)
Accessory Mounting bracket…………1
