DM-524B Dynamic Microphone

DM-524B Dynamic Microphone

DM-524B

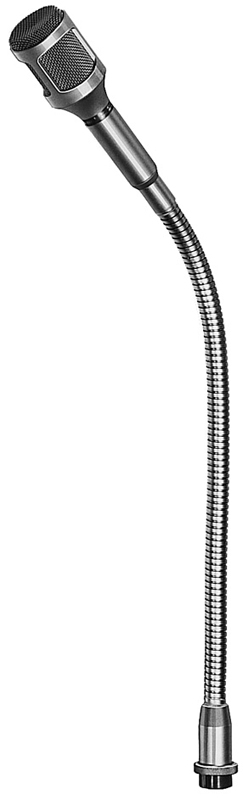

A unidirectional microphone with a gooseneck shaft. Use this microphone in conjunction with the ST-73A desk-top stand (option).

Type Moving coil microphone
Polar Pattern Cardioid pattern
Rated Impedance 600 Ω, balanced
Rated Sensitivity -54.5 dB (1 kHz, 0 dB=1 V/Pa)
Frequency Range 100 Hz - 10 kHz
Output Connector φ21, 3-pin plug (BTS21P3B)
Finish Microphone body, Gooseneck shaft: Gold, sparkling paint
Weight 465 g
Usable Stand ST-73A (option) or φ21 mm 3-pin socket
Accessories φ21 3-pin receptacle (BTS21R3A)……1, M3×10 screw……3, W3 washer……3, SW3 spling washer……3, M3 nut……3
