SA-60D *AS Model*
A 60W Class D amplifier, the school digital amplifier SA-60D is suitable for classrooms and training room applications. This model is specially designed for both desktop and wall mount installation. Pair it up with 1-2 speakers, a microphone, an external audio device or an MP3 player and you’re all ready to go.

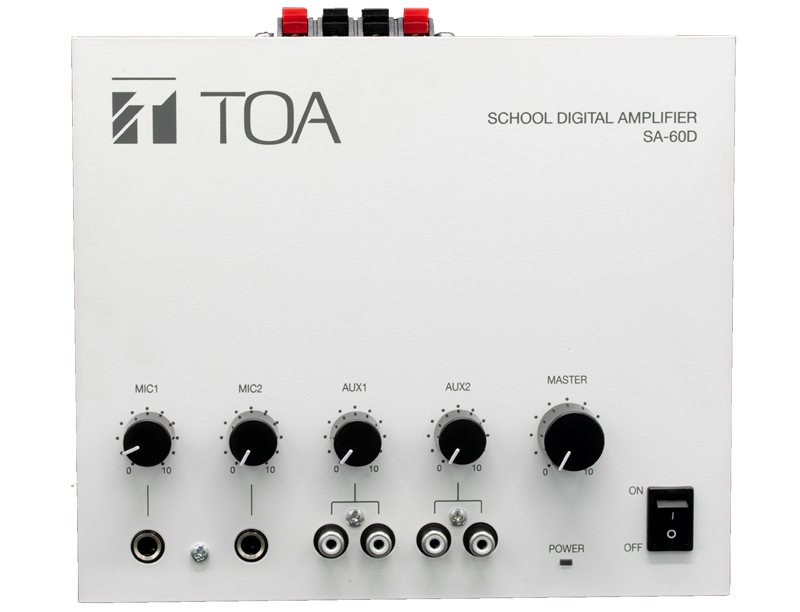

SA-60D School Digital Amplifier
- * 0 dB = 1 V
| Power Source | 220 - 240 V AC, 50/60 Hz |
|---|---|
| Rated Output | 60 W |
| Power Consumption | 100 W (rated output), 18 W (EN60065) |
| Frequency Response | 20 Hz - 20 kHz |
| Distortion | 1 % or less |
| Input | MIC 1, 2: -52 dB*, 600 Ω, unbalanced, ø6.3 phone jack (2P) AUX 1, 2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack |
| Output | SPEAKER OUT: Low impedance (2 x 8 Ω or 1 x 4 Ω), Push-in terminal |
| S/N Ratio | MIC 1, 2: 60 dB or more AUX 1, 2: 70 dB or more |
| Protection | Power Supply Thermal Shut down Power Amplifier Thermal Shut down Power Amplifier Over Current Each protection will be restored automatically |
| Indicator | Power LED (Blue) |
| Operating Temperature | 0 ℃ to +40 ℃ |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Case: Steel plate, off-white, paint Knob: ABS resin, black |
| Dimensions | 210 (W) × 70.6 (H) × 180 (D) mm |
| Weight | 1.6 kg |
| Accessory | Wall Mounting Pattern Paper x 1 |
