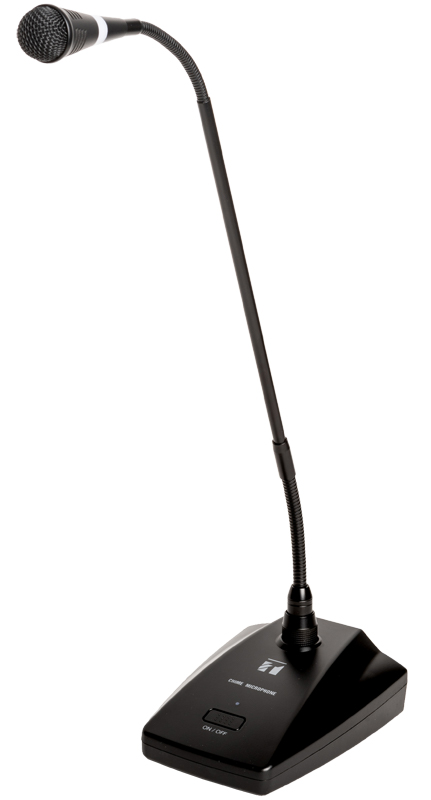

EC-380 Chime Microphone

EC-380 Chime Microphone

EC-380 Chime Microphone *AS Model*

The EC-380 is an uniquely shaped and high-quality condenser microphone equipped with a electrical chime and designed for paging applications. With its' adjustable chime volume, flexible power option of battery or DC, EC-380 is definitely the choice when selecting the a hassle-free plug and play chime microphone.

Power Source 6V DC (4x "AA" batteries) or DC adapter: 9-24V
Current Consumption 13 mA during chime and 6 mA microphone operation
Microphone Element Condenser
Polar Pattern Cardioid
Chime Tones 4-Tone Chime (UP/DOWN)
Rated Impedance 600 Ω, balanced
Output Microphone: -41 dB ±3dB (1 kHz 0 dB=1 V/Pa)
Chime Tones: -31 dB ±3dB (maximum position)
Frequency Response 50 Hz - 18,000 Hz
Output Connector XLR-3-32 equivalent
RJ45: Audio Output, Power Supply and contact output
Operating Temperature 0 °C to +40 °C
Finish Stand Mic: ABS resin, black, paint
Mic Shaft: Copper alloy, black, paint
Dimensions 110 (W) × 145 (L) x 532 (H) mm
Weight 558 g (exclude batteries)
Accessory Windscreen x 1, XLR Cable Stereo Phone Plug (7.5m) x 1
